TJM

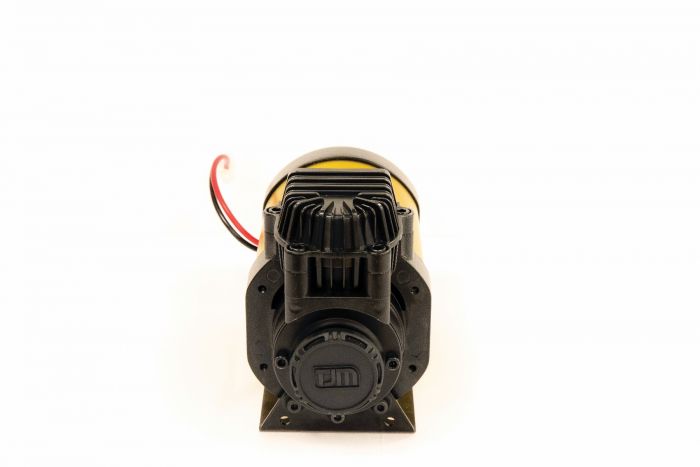

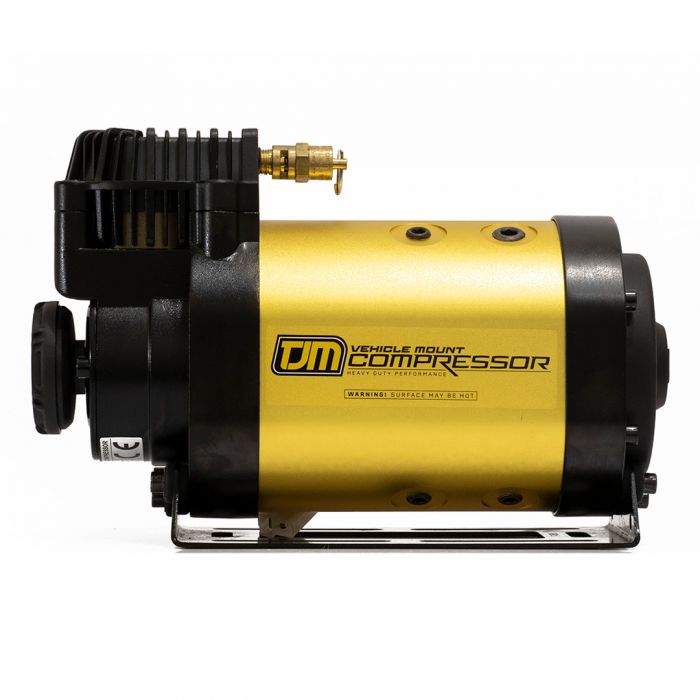

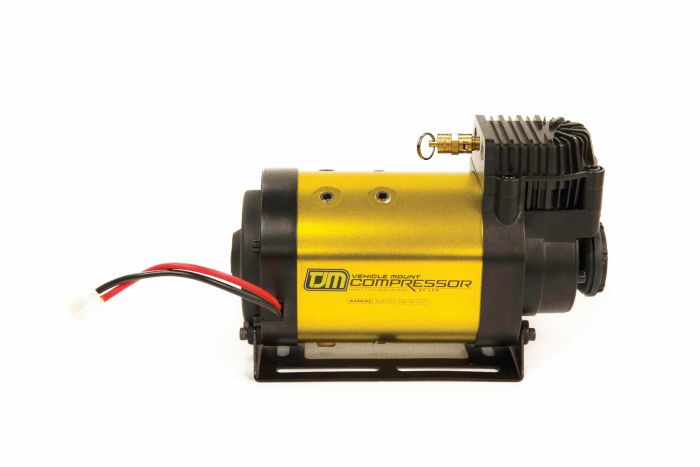

TJM PRO SERIES AIR COMPRESSOR SINGLE
TJM PRO SERIES AIR COMPRESSOR SINGLE
Couldn't load pickup availability

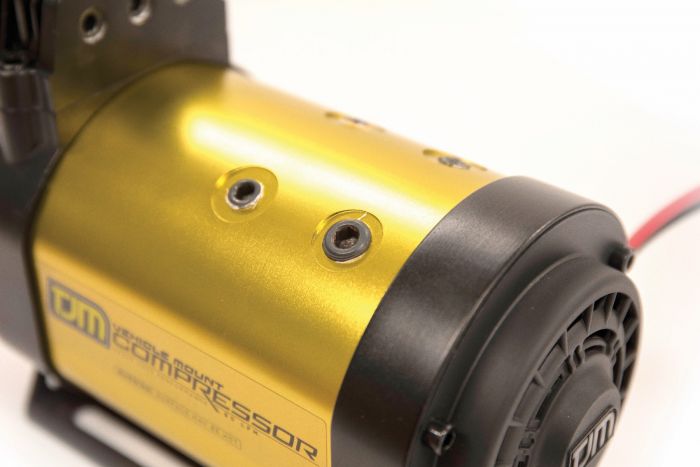

Stay ahead of the pack with a TJM Pro Series Single Air Compressor. It delivers an imposing 3.04CFM for speedy inflation, which is made possible thanks to its powerful internal componentry and advanced convection cooling system. Each TJM Pro Series Single Air Compressor’s exterior is constructed from a careful combination of cast and extruded aluminum. This seamless anodized exterior provides superior protection for its oversized internals, hard-anodized cylinder bore and Teflon-impregnated piston seal. The Pro Series Single features five unique mounting angles for easy access in your 4x4 – whether that’s in your engine bay, vehicle cab or drawer system – while it includes multiple tire inflation points, auxiliary ports and a Pressure Cut-Out switch for exceptional utility.
FEATURES
| Flow rate | 86LPM |
| 1-tire inflation - 0-40PSI (285/75/R16) | 4:09 |
| External ports | 6 x 1/8†BSPT, 2 x ¼†BSPT, 1 x 1/8†NPT port for safety relief valve |
| Air tank | 0.23L with integrated air tank extrusion |
| Independent power output | No |
| Mounting | 5-angle mounting system |
| Bore size | 48mm |
| Fuse rating | 40A (maxi-blade) |
| Cooling system | Convection cooling with internal fan |
| Supply voltage | 12V |
| Duty cycle | 100% @ 80PSI (23°C) |
| Air filter | 2-stage |
| Pressure cut-out switch | Yes. On: 90PSI Off: 120PSI |
| Thermal cut-out switch | 105°C |
| Over-pressure safety valve | Yes, factory set 155PSI |
| Warranty | 3 years |
