XGS REMOTE SHOCK ASSEMBLY REAR - RHS

XGS REMOTE SHOCK ASSEMBLY REAR - RHS

$479.99 USD
$479.99 USD
Sale Sold out

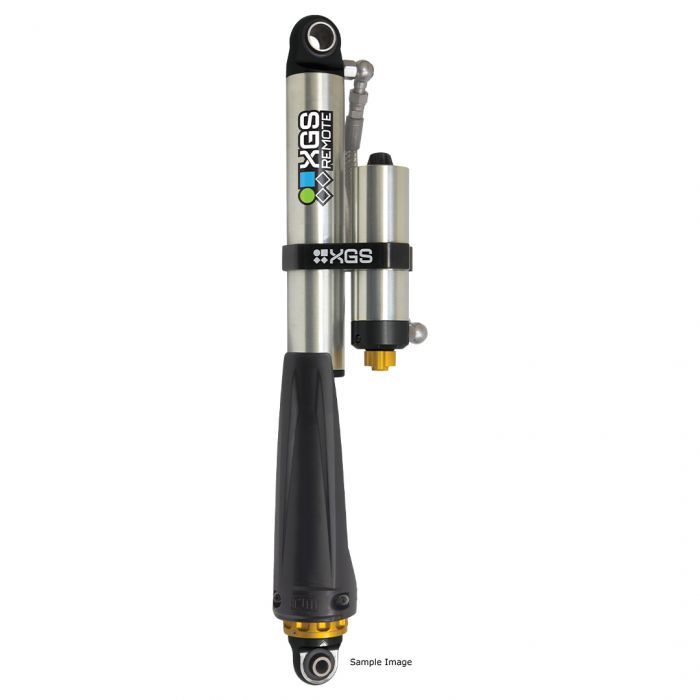

XGS Remote has been designed to provide the ultimate off-road experience for both weekend adventurers and high performance off-road users. The unique 8 stage, separate compression and rebound adjustability provides a fully customized ride to suit any load application. The patented inbuilt hydraulic bump-stop provides the perfect solution for vehicles that experience shocks bottoming at high speeds or when heavily loaded. As the shock absorber reaches maximum compression, the internal bump stop progressively increases damping resistance for maximum impact control. As a result, the vehicle and occupants are protected from high stress loads. The innovative monotube design consists of a single wall construction which ensures direct heat dissipation. This coil over assembly includes the coil spring and has an adjustable spring seat for fine tuning of ride height.

FEATURES

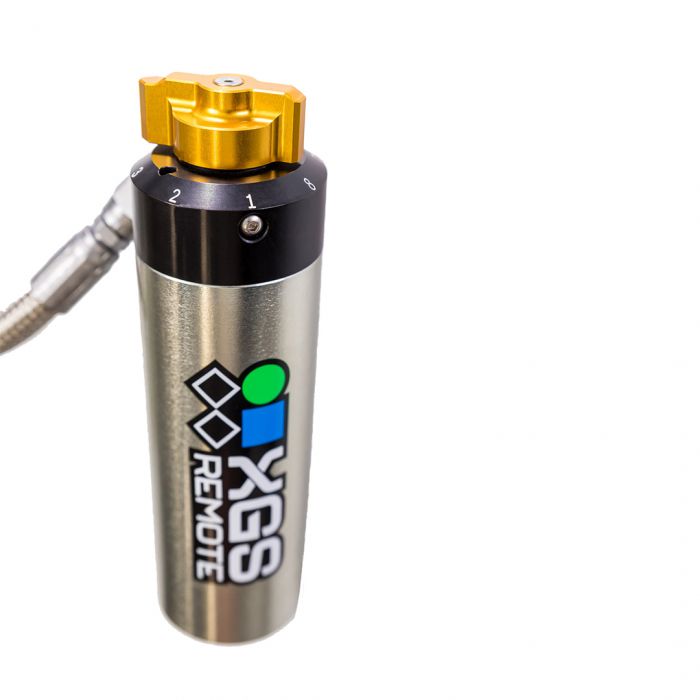

Shock Design: Nitrogen Charged, mono tube with remote reservoir
Construction: 1/8"" tube wall thickness
Piston Bore: 2.05""
Piston Rod: 0.8"" hard chrome plated
Lift: 0-1.75""
Suits: Rear right
Features:

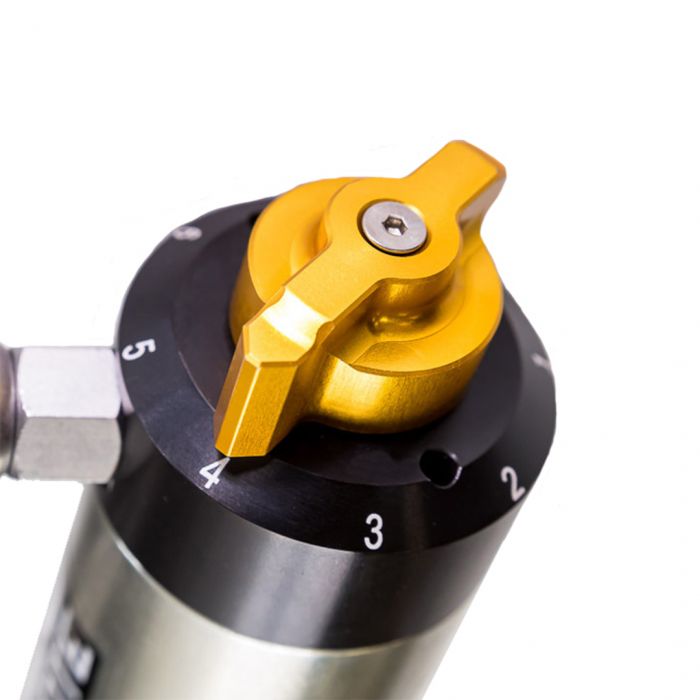

8 stage adjustment of compression & rebound
Position sensitive damping
High durability rubber bushes
In-built hydraulic bump stop
Steel braided high temp oil hose
High impact polypropylene stone guard
High grade damping oil
Automatic multi-stage velocity controlled valving

Compatible Vehicles

  • TOYOTA HILUX 8th GEN 08/18-07/20 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/18-07/20 Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/20-On 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/20-On 4Dr Pick Up Rogue/Rocco
  • TOYOTA HILUX 8th GEN 08/20-On Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 09/15-07/18 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 09/15-07/18 Extra C/Chas & Pick Up
